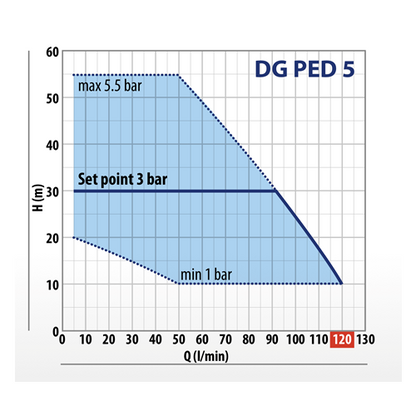

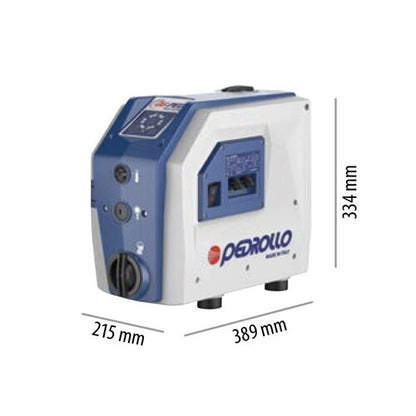

Pedrollo DG PED5 Variable Speed Multistage Pump (Flow 120 LPM)

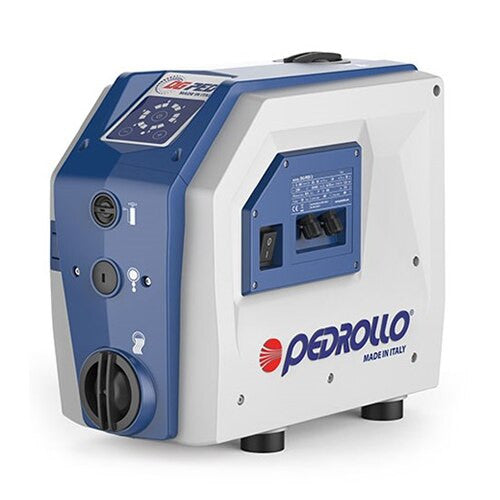

The DG PED is an automatic pressurisation system with an inverter which integrates a built-in high efficiency self-priming pump, a accumulator tank, pressure and flow rate sensors and a non-return valve

The DG PED is a compact autonomous quiet and high performance pumping system.

The sophisticated electronically controlled inverter, at the heart of the system, in an intuitive way:

• maintains the pressure of the installation constant by regulating the velocity of the pump in accordance with the water required;

• controls the hydraulic and electric operating parameters and protects the pump from abnormalities;

• can be equipped with an expansion card that makes it possible to work in parallel with other DG PED in the pumping groups and to manage input and output signals;

• it adapts to every type of pressurisation system, including existing ones;

• it limits the starting and operating currents in order to provide a greater saving of energy.

Features

• Manometric suction lift up to 8 m
• Liquid temperature between 0 °C and +40 °C
• Ambient temperature betwee n0 °C and +40 °C
• Max. working pressure 10 bar
• Continuous service S1
• Operates in a vertical position
• Very low noise
• Save Up to 50% in power usage

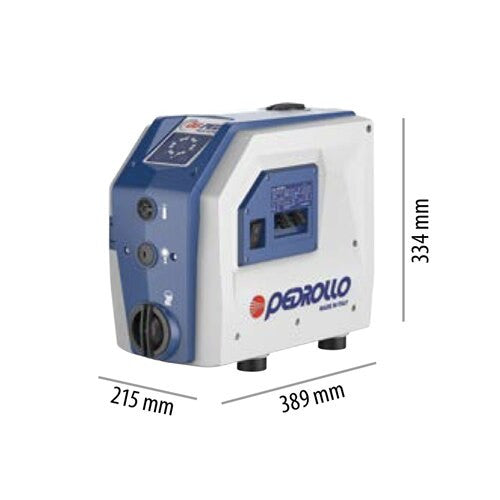

• Compact
• Can put 2 DG PED’s together for higher flow applications
• Can be installed anywhere due to low noise and water cooled motor
• Invertor/VSD Drive which will give a smoother/even pressure throughout a house or Irrigation applications

• Supply voltage ~ 230 V ± 10%
• Frequency 50 Hz
• Insulation: class F
• Max absorbed current:– 10 A DG PED 5
• P1 Maximum absorbed power:– 1.5 kW DG PED 5
• Protection IP X4

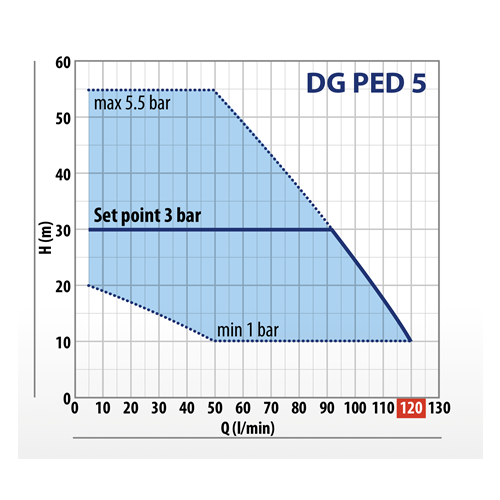

• Factory set point 3 bar

• Whole House and Irrigation applications for constant pressure pump from Rainwater Tank
• DG PED can be packaged with a Rain Mains diversion Valve
• Applications were Mains Water pressure is low, The DG PED will boost the pressure up to 5 bar / 500kpa above the current low pressure!!
