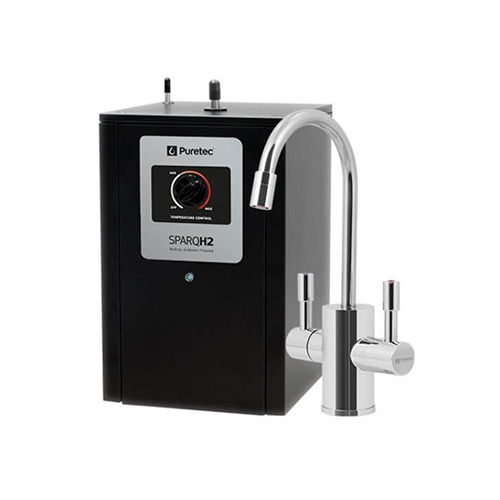

Puretec SPARQ H2 Instant Boiling Hot and Ambient Filtered Water System

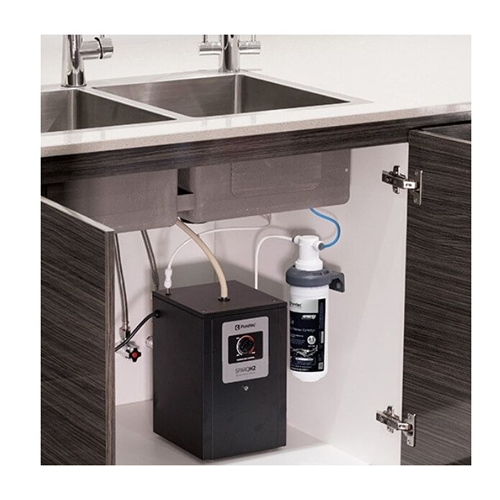

Puretec SPARQ H2 under sink system provides instant boiling or filtered ambient water from a single elegant tap. Up to 60 cups an hour of steaming hot water or ambient filtered drinking water for your kitchen, bar or office. Whether used for a morning cup of tea or coffee or for commercial food preparation area, the Puretec SPARQ H2 is ready whenever you are. Convenient for preparing hot beverages, cooking soups, pasta or rice, or cleaning grease off the stove top. The sleek lines and elegant styling will be a stylish addition to any home or office kitchen. Unlike other systems the SPARQ H2 uses simple efficient and reliable technology to deliver instant hot water, and you won’t have to worry about expensive maintenance costs. Ultra Z 3 stage filtration technology provides clean tasting ambient drinking water free of cysts, sediment, taste & odours, bacteria and chemicals. It also removes 99% of Cryptosporidium and Giardia cysts.

A safety lock on the hot water tap prevents scalding, and built in protections keep the system and users from unexpected power or water supply interruptions. Standby power usage is less than a 40W light bulb and the insulated tank reduces heating time and conserves water. Quick and easy installation where ever there is mains water access. Holds an ample 2.6L of water in a removable stainless steel tank and hydrodynamically designed chamber allows the hot water to flow to the top of the tank which prevents mixing already heated water with incoming ambient water. When you need instant steaming hot water, the system draws from the already heated water to conserve energy use. Initial installation carried out by licensed plumbing contractor.

This system provides filtered ambient or boiling water from a single elegant tap.
Ultra Z Filtration Technology filters out chlorine, sediment, chemicals, taste & odour, bacteria and cysts down to 0.1 micron.
Stage 1 removes particles, clarifies the water and removes sediment, rust, sand, silt & algae
Stage 2 chlorine and chloramine reduction, eliminates bad taste & odours, chemical and sulphur reduction
Stage 3 fine sediment and particles removal down to 0.1 micron
Includes a lock on the hot water tap to prevent scalding, thermal fuse protection and water pressure protection
The insulated hot water tank and Vapour Recovery Technology reduces heating time and conserves energy
The standby power usage is less than a 40W light bulb

Model: SPARQ-H2
Replacement Filter Cartridge: Z1-R
Micron Rating: 0.1 Micron
Hot Water Capacity: 60 Cups/Hour
Water Pressure: 172 to 500 Kpa
Hot Water Temperature: 60° to 98°C
Power Requirements: 50Hz AC / 220 to 240 V
Rated Power: 780 W
Appliance Dimensions: 310 (h) 200 (w) x 220 (d) mm

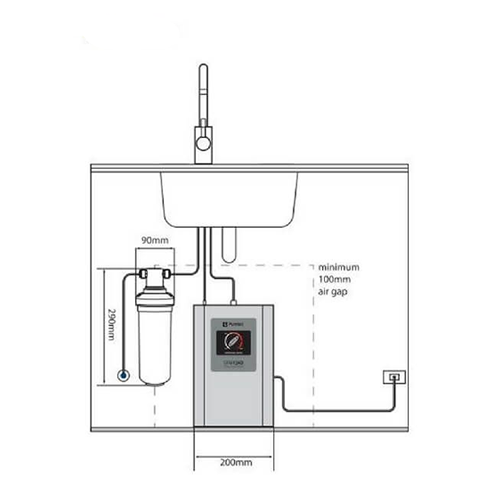

Ideal Undersink Dimensions: 520 (h) x 750 (w) x 660 (d) mm
Tap Dimensions: 127mm (h) x 60mm (w)
Required Hole for the Tap: 35 mm
Water Connection: Mains in (350 Kpa max) – ¼” Push Fit/Faucet to 6mm Push Fit
Electricity: 16A supply – Earth Leakage Protected
Max. Recommended Inlet Pressure: 350 Kpa
Power Requirements: 50Hz / 230 V 16A Supply Required
2 Year warranty is 1 year parts and labour, plus 1 year parts only.
Suitable for residential or small office installations (not commercial environments)
