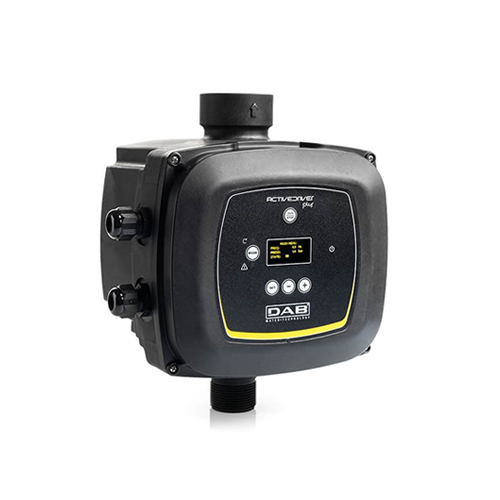

DAB Variable Frequency Drive Pump Controller

240V 1PH in, 240V 1PH out, 1.1 Kw, 8.5 A, 1-6 bar set point range, communication.

Ports 1-1/4” BSPM In, 1-1/2” BSPF out, max flow 300 L/m

2 Year DAB Pumps Warranty

The Active Driver Plus device is an innovative variable speed electric pump integrated control system, capable of maintaining a constant pressure in relation to the varied flow rates. The set pressure can be adjusted and the various settings and related error warnings can be viewed thanks to a simple and immediate user interface. Active Driver Plus comprises of: an inverter, pressure sensor and a flow sensor.

Advantages of using the Active Driver Plus:

• Greater comfort, greater energy saving
• Greater noise reduction, reduced dimensions
• Eliminates overpressures, increased lifespan of the electric pump
• Easy installation, capable of controlling many different types of electric pumps. Active Driver Plus is equipped with a malfunctions protection system. In the event that a malfunction is verified, it is signalled on the display and, depending on the type of error, the electric pump can turn off.
• Protection against dry running, amperometric protection
• Communication between devices
• Electric pump overheating protection against abnormal power supply voltages.
