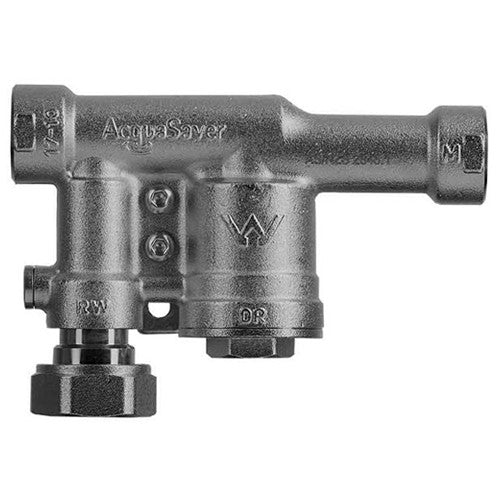

Aquasaver (20mm) Mains Diversion Valve

AquaSaver : 3/4 Inch Mains Diversion Valve

Hydraulically operated, Solid brass construction, Built-in dual check valves

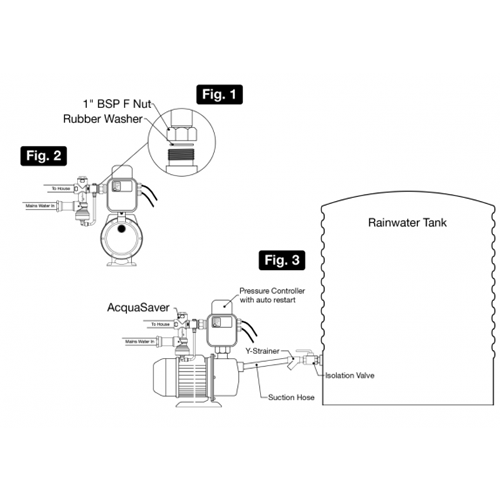

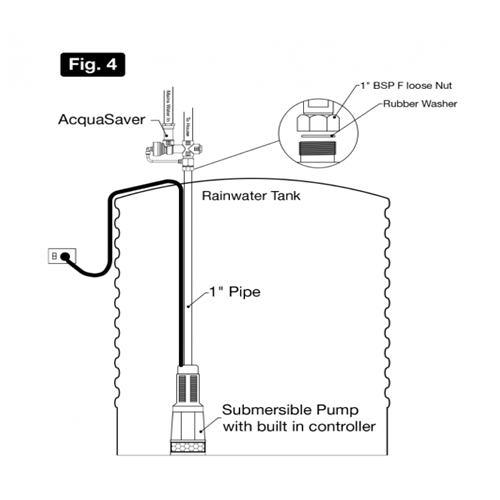

The AcquaSaver Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.

It is suitable for up to 2 toilets and washing machine and an extra tap outlet.

Meets Requirements of ATS 5200.477.

Complies to AS/NZS 3500.1 when installed by a licensed plumber
Product Features:

Easy to install
Patent design
Solid Brass mounting bracket (optional)
Watermark approved to ATS/NZS 5200.477
Does not require regular maintenance
No electrical consumption - No electronic components
Solid brass construction - Fully weatherproof - Built to last
Suitable for any pressure pump with sufficient head pressure
Can be mounted in any position
Built-in dual check valve for backflow prevention
2 Year warranty

Specifications:

Max Mains Pressure 500 KPa
Max Pump Pressure 600 KPa
Min Pump Pressure 300 KPa
Max Flow Rate 50 LPM
Max Water Temperature 40 C
Min Water Temperature 0 C
Pump Inlet 25mm 1” BSP F
Mains Water in 20mm 3/4” BSP F
Outlet 20mm 3/4” BSP
Weight 0.85 KG

Materials:

Solid Brass Construction

Market Sectors:

Commercial
Light Industrial
Muncipal
Residential
Agriculture
Golf/Turf Irrigation
Mining
Building Services
