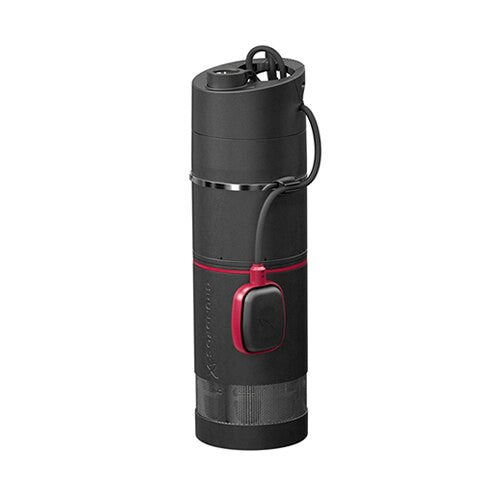

Grundfos SBA3-45A Auto Multistage Submersible Pump (Flow 110 LPM)

The Grundfos SBA 3-45 A is an all-in-one submersible booster designed for pumping clean water for domestic use. The SBA is built on the proven SB platform and comes with an integrated control unit. This eliminates the need for an external pump controller in the house. It is silent when submerged and therefore a noiseless alternative to surface-mounted pumps. The pump is built from high quality composite and stainless steel materials that are resistant to corrosion.

The SBA 3-45 A is equipped with a 15 m supply cable, and the maximum installation depth is 10 m below the water level, with a liquid temperature ranging from 273 K to 313 K.

The pump starts automatically when the pipe pressure falls below 2.2 bar.

The SBA 3-45 A is ideal for operation in a well or ground tanks, as it easily prevents solid particles from entering the pump. The maximum particle size is 1 mm.

The single-phase model is effectively protected against any accidental overload by built-in thermal protection.

The pump has built-in thermal protection, which immediately stops the pump if it overheats. Having cooled down, the pump automatically restarts when it reaches a normal temperature.

FEATURES

• Automated control and ongoing protection
• Virtually silent submerged operation
• Easy submerged installation – plug & pump
• For water sources above or below ground (submerged)

SPECIFICATIONS

• Flow switch: Yes
• Rated flow: 2.83 m³/h
• Rated head: 30.1m
• Max particle: 1mm
• Return valve: Yes
• Start pressure: 220kPa
• Rated speed: 2800RPM
• Pump housing: Composite
• Impeller: Composite
• Type of inlet connection: Strainer
• Pump outlet: 25mm (1")
• Maximum installation depth: 10m
• Rated power (P2): 0.62kW
• Rated voltage: 1 x 220-240v
• Rated current: 4.8Amp
• Starting current: 12Amp
• Built in motor protection: Yes
• Length of cable: 15m
• Weight: 11.1kg
