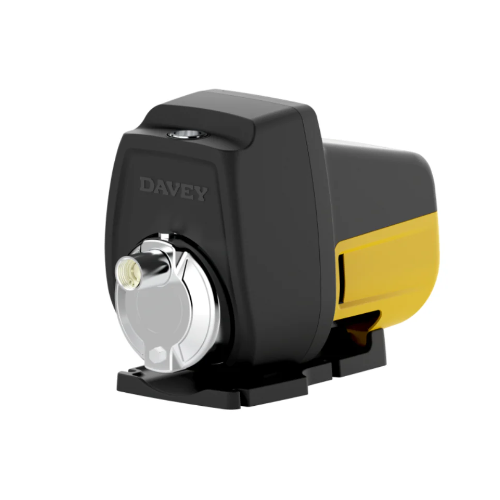

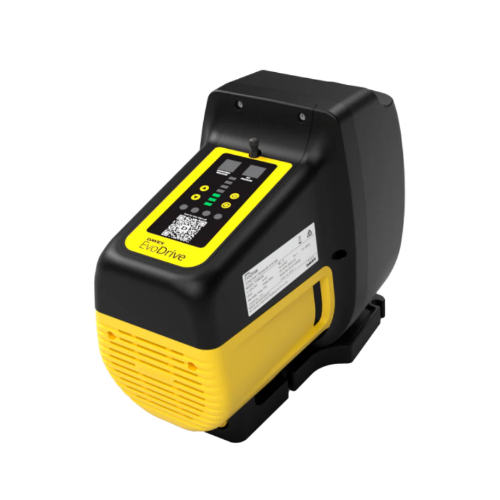

Davey ED60-09 Variable Speed Pressure Pump

The Davey EvoDrive ED60-09 is a premium constant pressure pump designed to give you the ultimate in water supply performance at home. Unlike traditional fixed-speed pumps that surge and lose pressure when multiple taps are running, the EvoDrive uses advanced variable speed drive (VSD) technology to automatically adjust the motor speed to meet your exact water demand. The result is smooth, consistent water pressure throughout your entire home—whether you’re showering, watering the garden, running appliances, or all three at once.

Built tough with a 304 stainless steel pump body, shaft, and impellers, the EvoDrive is engineered for long-lasting durability and corrosion resistance. The quiet yet powerful 0.90kW permanent magnet motor delivers up to 100 litres per minute at 700kPa, making it ideal for medium-sized households that rely on rainwater tanks, storage tanks, or need to boost low mains pressure.

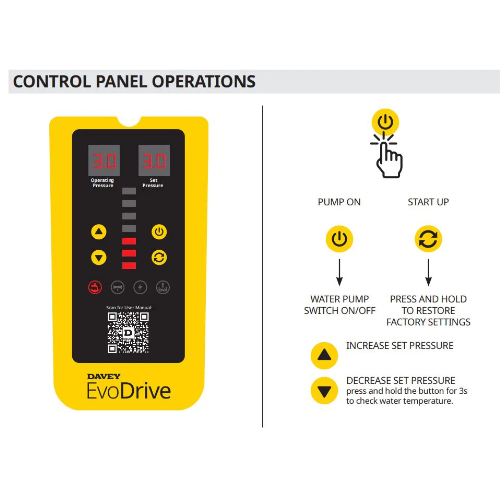

User-friendly operation is at the heart of the EvoDrive. With its illuminated digital touch panel, you can monitor pump performance, adjust pressure settings, and view fault warnings at a glance. Safety is built in with dry run protection, loss of prime protection, overcurrent safeguards, and automatic fault diagnostics, giving you complete peace of mind.

FEATURES

• Constant pressure performance – VSD technology adjusts pump speed to demand.
• Premium 304 stainless steel casing, shaft, and impellers for long service life.
• Digital touch-panel control with fault warnings for simple operation.
• Plug-and-play installation – just prime, plug in, and pump.
• Protection built in – dry run protection, loss of prime protection, over-temperature safeguards.
• Quiet & efficient permanent magnet motor.
• Adjustable pressure settings to suit your home’s needs.
• Dual pump ready – can be connected in duty/assist mode (cable sold separately).
• Compact & robust with 2-year Davey warranty.
• Constant pressure output with Variable Speed Drive (VSD)
• Customisable pressure settings for tailored performance
• On-screen fault alerts help diagnose issues early and reduce downtime
• Dry run protection prevents internal damage if water supply runs low
• Loss of prime protection improves reliability during suction interruptions
• Plug-and-pump setup – just install and it’s ready to go
• Works in duty/standby or assist pump mode in dual setups.
• 304-grade stainless steel impeller and casing
• Suction lift up to 13 ft (4m) - ideal for tanks or remote sources
• Permanent magnet motor delivers efficient, ultra-quiet performance

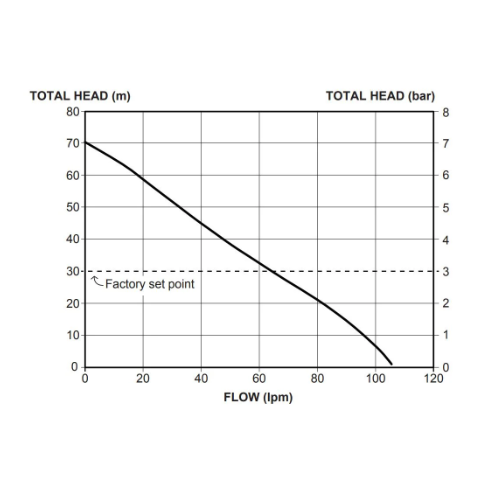

SPECIFICATIONS

• Power: 0.90kW, 220–240V, 50–60Hz
• Max Flow: 105 L/min
• Max Pressure: 700 kPa (7 bar)
• Default Pressure Setting: 300 kPa (adjustable)
• Max Suction Lift: 4m
• Operating Water Temp: 3–70°C
• Ambient Temp: 0–50°C
• Inlet/Outlet: 1” BSP female
• Pump Construction: 304 stainless steel body, impellers, shaft & stages; Noryl diffusers; SiC/C mechanical seal
• Pressure Tank: Pre-charged 1.8–2 bar
• IP Rating: IPX5

APPLICATIONS

• Boosting water pressure in medium-sized to large homes
• Supplying clean water from rainwater or storage tanks
• Pressure boosting from mains via isolation tank or backflow prevention
• Compatible with dual pump installations for higher capacity or duty/standby redundancy
