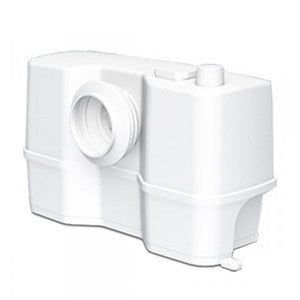

Grundfos Sololift2 WC-1 Pump

SOLOLIFT2 is a unique range of compact lifting stations enableing a drain of any domestic sanitary appliance wherever needed, independent from the gravity drain system. The units collect and pump the wastewater through a thin pressure pipe (>23mm) to the next down pipe _ up to 6m high or 100m distance.

An extra toilet or a complete bathroom in attic or basement must be no longer only a wish with SOLOLIFT2.

SOLOLIFT2 is designed according to the needs of professionals _ high reliability and easy, clean service in mind.

The units come ready to use with a plug and operate full automatic when water enters the tank.

Application

Wherever the drain of a sanitary appliance is required but no gravity drain pipe is available or possible. The units with a WC connection are dedicated to installation in private homes only. Other units can be utilized also for commercial application.

Features and benefits

• ready-to-install solution
• highest reliability thanks to a high performance cutter and motor
• handle accidently flushed female articles
• fast, easy and clean service _ no need to remove the unit from installation
• all relevant service parts dry and clean accessible _ not submerged in tank
• easy access level switch units, single accessible for maintenance
• pressure proof, welded tank system, leakage free in case of backwater
• odour-free by venting valve with charcoal filter
• maintenance free tank design reducing clogging risk
• hot water resistant up to 90çC for 30 min.
• very compact design
• low start levels enable modern, flat shower trays
• selectable outlet direction (top and side)
• height adjustable inlet connectors ease installation and replacement
• up to 4 inlet pipe and 6 pressure pipe connection selectable
• all units LGA-, VDE-, EMC- and GOST- approved
