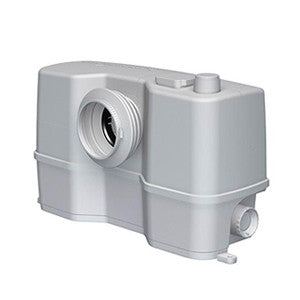

Grundfos Sololift2 WC-3 Pump

SOLOLIFT2 is a unique range of compact lifting stations enableing a drain of any domestic sanitary appliance wherever needed, independent from the gravity drain system. The units collect and pump the wastewater through a thin pressure pipe (23mm) to the next down pipe  up to 6m high or 100m distance. An extra toilet or a complete bathroom in attic or basement must be no longer only a wish with SOLOLIFT2. The range consists of 5 compact lifting station variants for disposal of domestic wastewater. 3 units, called WC-1, WC-3 and CWC-3, are designed to take wastewater from a toilet and further sanitary appliances. 2 units, called C-2 and D-2, are designed to take grey wastewater from several objects. The numbers indicates how many additional inlet connections are possible. SOLOLIFT2 is designed according to the needs of professionals  high reliability and easy, clean service in mind. The units come ready to use with a plug and operate full automatic when water enters the tank. Wherever the drain of a sanitary appliance is required but no gravity drain pipe is available or possible. The units with a WC connection are dedicated to installation in private homes only. Other units can be utilized also for commercial application. WC-1, WC-3 and CWC-3 are designed to take the wastewater of up to 1 toilet, 1 washbasin, 1 shower and 1 bidet. CWC-3 is the extra slim variant, designed to be integrated in front-wall installation. C-3 and D-2 are designed to remove the (hot) wastewater from a bath, shower, washbasin, sink, washing machine and dishwasher. Their compact measurement enables the integration in front-wall installation and floor units.

Features:
-ready-to-install solution
-highest reliability thanks to a high performance cutter and motor
-handle accidently flushed female articles
-fast, easy and clean service  no need to remove the unit from installation
-all relevant service parts dry and clean accessible  not submerged in tank
-easy access level switch units, single accessible for maintenance
-pressure proof, welded tank system, leakage free in case of backwater
-odour-free by venting valve with charcoal filter
-maintenance free tank design reducing clogging risk
-hot water resistant up to 90 C for 30 min.
-very compact design
-low start levels enable modern, flat shower trays
-selectable outlet direction (top and side)
-height adjustable inlet connectors ease installation and replacement
-up to 4 inlet pipe and 6 pressure pipe connection selectable
-all units LGA-, VDE-, EMC- and GOST- approved
