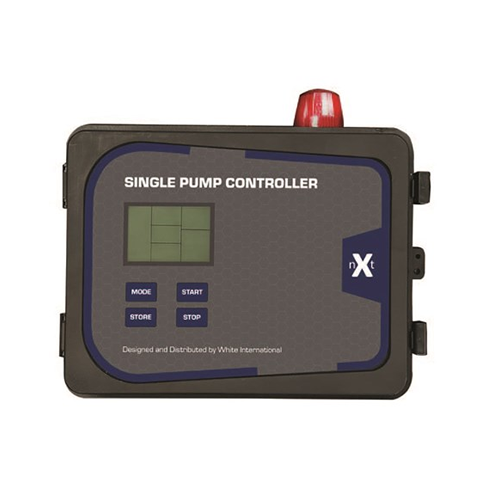

Bianco Single Pump Control Panel 240V 0.37 - 2.2kW

The Bianco nXt range of intelligent controllers are:

• Suitable for installation in various industrial and domestic applications
• Function Switches for drainage, pressure boosting and transfer applications
• User Friendly features for controlling and protecting pumps and reporting faults with live data retention
• RS485 communication interface for easy integration into Building Management Systems
• Ingress protection rating IP54 with intelligent dynamic LCD display for pump running information that is suitable for installation both indoors and outdoors
• Automatic Calibration of iCON intelligent controller which sets pump thermal overload by means of button push

The Bia nXt-SPC (single Pump Controller) is a module intended to control and protect an individual single phase pump up to a nominal 2.2 kW The user can select a control logic sequence to match their application and enjoy the benefits of superior control and protection for the pump. There are 3 primary control logic modes • ‘Drainage’ where control concentrated at the source • ‘Boosting’ which references pressure switching for control • ‘Transfer’ which is a mix of source and destination control nXt- SPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS

PROTECTION FUNCTIONS  - Protection functions can be set, enabled or disabled independently • Over voltage • Under voltage • Dry Run (under current) • Overload (over current) • Pump stall • Open phase protection • Phase reversal (3 phase models only) • Phase in-balance (input / output) • Pump anti-seize (96hr default) • Manual or Automatic operation • nXt-SPC has an audible alarm and a flashing light to indicate an alarm state. It supports an external alarm unit • Fault log • Pump accumulated running time memory • Pump start / stop delay time setting

CONTROL INPUTS • Switched input - float, pressure switch, temperature switching • Level probe (capacitance type probes)
