Grundfos CMB3-37 Multistage Pump (Flow 85 LPM)

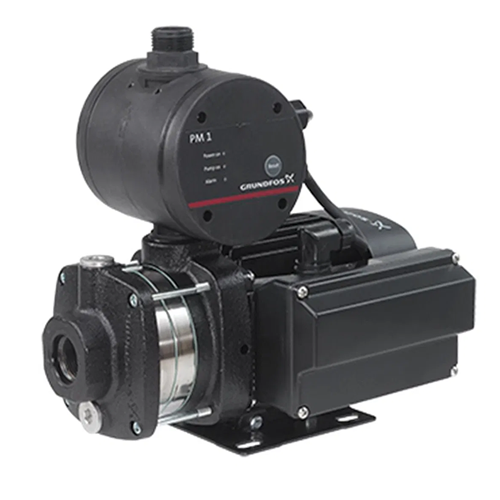

The Grundfos CMBasic is a compact booster pump designed for domestic and light industrial use. The booster unit consists of a Grundfos CM cast iron pump with stainless steel hydraulic components and PM1 Pressure Manager. The Pressure Manager allows the pump to start and stop automatically according to demand and protects the pump from dry running. The pump includes 1.2m cable with plug.

The Grundfos CM Booster with pressure manager PM1 is a compact booster set for water supply in domestic applications.

The pressure booster unit consists of a Grundfos CM pump and a Grundfos pressure manager PM1. The pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry running.

The CM Booster is very easy to install. When the booster has been connected to the pipework, it is all a matter of plugging the plug into a socket, and the system is operational.

APPLICATION

• Mains water boosting
• Rainwater supply from above ground water tanks
• Household water supply
• Light industrial use

• Robust Design
  All moving parts are made from high quality, corrosion resistant stainless steel to ensure the longest life possible.
• User-friendly interface
  The pump features a user-friendly interface with LED indicators displaying power status, pump running, and alarm indication.
• Protective features
  The pump incorporates a range of protective features such as dry run protection, thermal overload protection, cycling alarm and maximum continuous operation time - 30 mins (excluding CMBasic 1-36) to protect the pump and ensure a long life.
• Easy installation
  The booster unit is a compact solution, which makes it suitable for most installations. Simply connect the inlet and outlet and you have a fully operational booster unit.
• Integrated non-return valve
  Non-return valve for backflow prevention.

• Power on indication
• Pump running indication
• Alarm indication
• Dry-running protection
• Free position in installation
• Suitable for generator supply
• Rotary outlet connection
• Integrated non-return valve
• Cycling alarm
