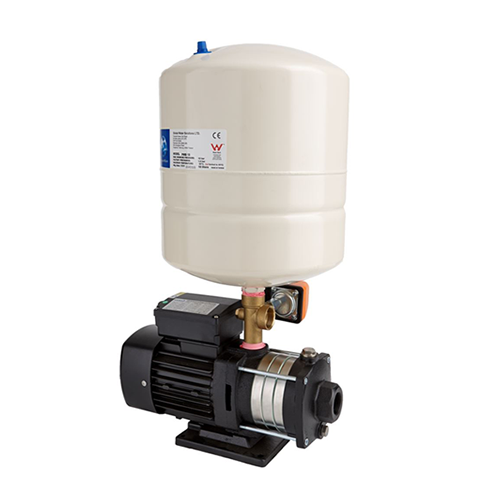

Hyjet HCM2-40-PT18 Multistage Pump with Tank (60 LPM)

HCM Series Horizontal Multistage Pumps are a must for higher pressure applications with a quiet and reliable operation. They come with a tough construction, IP 55 rated motors and stainless steel chambers, impellers and motor shaft. The HCM series are AS4020 Certified for potable water applications and are available in 4 _ 6 stage models making them ideal for pumping water in residential, commercial and industrial applications.

APPLICATION

Household water supply and irrigation Rainwater tank pumpset Water transfer Pressure boosting

FEATURES

Automatic pressure controller (Start & Stop on demand) Run dry protection Quiet operation CONSTRUCTION Stainless steel impellers, chambers & shaft NBR carbon / ceramic mechanical seal IP55 motor Insulation class F Heavy duty brass coupling

HPT Series: Pressure Tanks HYJET diaphragm pressure tanks are ideally suited for a wide range of general applications including pump booster systems, thermal expansion, irrigation systems and to limit water hammer. Features & Benefits Single diaphragm design 100% potable quality butyl. Patented 316 stainless steel connection. Virgin polypropylene liner, so no water touches plain steel. Internal clench ring becomes more secure at higher pressures. High quality two part polyurethane, epoxy primed paint finish _ Almond. Brass stemmed air valve and O_ring sealed valve cap. NSF standard 61, CE / PED, WRAS approvals. Maximum temperature up to 90 çC. Standard maximum pressure 150 PSI / 10 Bar. 5 Year Warranty HPT Series: Pressure Tanks HYJET diaphragm pressure tanks are ideally suited for a wide range of general applications including pump booster systems, thermal expansion, irrigation systems and to limit water hammer.
