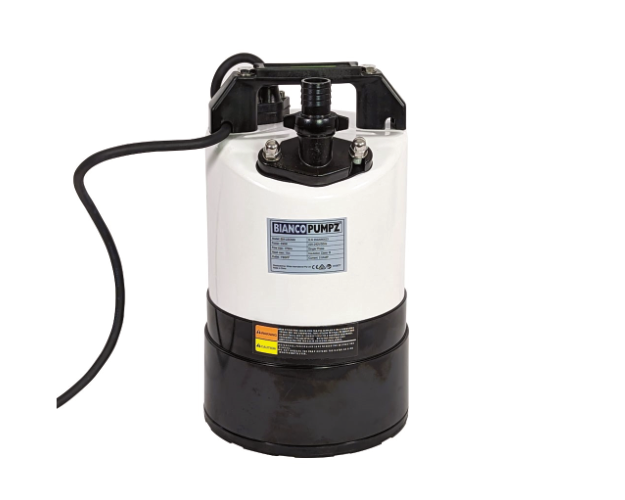

The Bianco LSC530 is a manually operated, light duty, occasional use pump suitable for pumping mostly clean water with minimum soft solids or other contamination
The LSC530 is a ‘puddle sucker’ type pump. Once primed and pumping, it will pump down to depths less than 3mm making it ideal for basement, garage or pool drainage applications.
Benefits:
- Light weight - easy to lift and lower
- Compact and able to be employed in sumps where space is limited
Features:
- Pump can be primed through discharge outlet for startup at any water level. The Internal check valve holds prime and restricts back flow through pump when stopped.
- Quality pump materials and construction to ensure reliable operation
- Industrial grade coating
- 10m H07RN-F Neoprene power lead and float lead
- Easy to install and use
| Technical Data | |
|---|---|
| RATED POWER (W) | 530W |
| MAX. FLOW [LPM] | 170 lpm |
| MAX. HEAD [M] | 11m |
| WORKING TEMPERATURE | < 40°C |
| LIQUID TEMPERATURE | 3°C - 40°C |
| MAX. IMMERSION DEPTH | 10m |
| MAX. DIA. OF PARTICLE | < 2mm |
| MOTOR DUTY | S1 Continuous |
| MOTOR PROTECTION LEVEL | Class B |
| MOTOR PROTECTION | In-built auto re-setting thermal overload |
| CAPACITOR | 10 uF +/-5% 450V |
| MOTOR SHAFT | Stainless Steel 201 |
| RATED VOLTAGE | 220V-240V 50 Hz |
| RATED CURRENT | 2.0A @ 230V |
| POWER CABLE TYPE | 10m H07RN-F |
| PROTECTION CLASS | IPX8 |
| IMPELLERS | Single Impeller |
| HYDRAULIC BODY | Coated AISi12 |
| INLET STRAINER | No |
| OUTLET | 1” DN hose tail |
| MECHANICAL SEALS | Graphite/Ceramic |
| AUTOMATION FUNCTION | N/A - Manual Operation |
| NET WEIGHT (KG) | Pump only 13.5kg |
| PACKAGE DIMENSION | 220Lx220Wx340H (mm) |
