Aquasaver (20mm) Mains Diversion Valve

Weight:
5.00 KGS
$240.00
(No reviews yet) Write a Review
Product Code:
AS-20MM

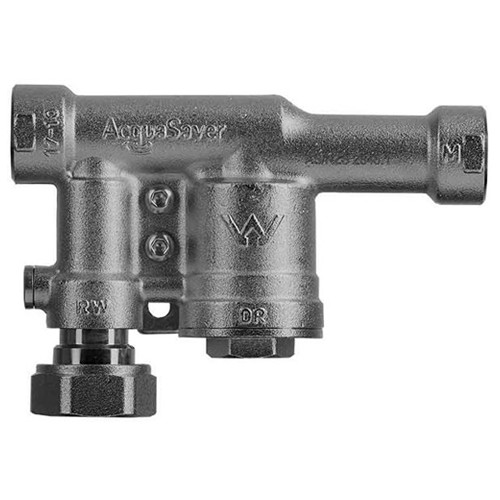

AquaSaver : 3/4 Inch Mains Diversion Valve

Hydraulically operated, Solid brass construction, Built-in dual check valves

The AcquaSaver Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.

It is suitable for up to 2 toilets and washing machine and an extra tap outlet.

Meets Requirements of ATS 5200.477.

Complies to AS/NZS 3500.1 when installed by a licensed plumber
Product Features:

¾¾¾ Easy to install
¾¾¾ Patent design
¾¾¾ Solid Brass mounting bracket (optional)
¾¾¾ Watermark approved to ATS/NZS 5200.477
¾¾¾ Does not require regular maintenance
¾¾¾ No electrical consumption - No electronic components
¾¾¾ Solid brass construction - Fully weatherproof - Built to last
¾¾¾ Suitable for any pressure pump with sufficient head pressure
¾¾¾ Can be mounted in any position
¾¾¾ Built-in dual check valve for backflow prevention
¾¾¾ 2 Year warranty

Specifications:

¾¾¾ Max Mains Pressure 500 KPa
¾¾¾ Max Pump Pressure 600 KPa
¾¾¾ Min Pump Pressure 300 KPa
¾¾¾ Max Flow Rate 50 LPM
¾¾¾ Max Water Temperature 40 C
¾¾¾ Min Water Temperature 0 C
¾¾¾ Pump Inlet 25mm 1” BSP F
¾¾¾ Mains Water in 20mm 3/4” BSP F
¾¾¾ Outlet 20mm 3/4” BSP
¾¾¾ Weight 0.85 KG

Materials:

¾¾¾ Solid Brass Construction

Market Sectors:

¾¾¾ Commercial
¾¾¾ Light Industrial
¾¾¾ Muncipal
¾¾¾ Residential
¾¾¾ Agriculture
¾¾¾ Golf/Turf Irrigation
¾¾¾ Mining
¾¾¾ Building Services

¾
