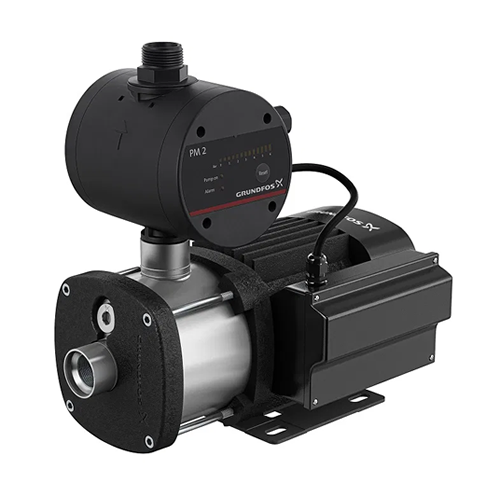

The Grundfos CM Booster Self Priming is a compact booster pump designed for domestic and light industrial use. The booster unit consists of a robust multistage centrifugal pump a generator friendly PM pressure manager controller. The pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry running. The CM Booster Self Priming is the perfect solution if you are struggling with insufficient mains pressure, and can also be used with above or below ground water sources.
The CMB-SP3-37 replaces the older CH2-50PC and CMB3-4 Models
Self Priming - With a suction lift of up to 8 metres (self priming up to 4 metres) the CM Booster Self Priming is ideal for pressurising water from above or below ground water sources.
Robust Design - All wetted parts are made from high quality, corrosion resistant stainless steel to ensure the longest life possible.
User Friendly Interface - The pump features a user friendly interface with LED indicators displaying power status, pump running, alarm indication and pressure indication.
Protective Features - The pump incorporates a range of protective features such as :- dry run protection, thermal overload protection, cycling alarm and maximum continuous operation time - 30 mins to protect the pump and ensure long life.
Easy Installation - The booster unit is a compact and adaptable solution, which makes it suitable for most installations. Simply connect the inlet and outlet abd adjust the start presure to suit individual requirements and you have a fully operational booster unit.
Integrated Non Return Valve - Non return valve for backflow prevention
Recommened Applications :-
- Mains Boosting
- Household Water Supply
- Boosting from above ground water tanks
- Boosting from below ground water sources (tank, dam)
- Light Inductrial Use
